Why wall mounted air filtration is having a big moment

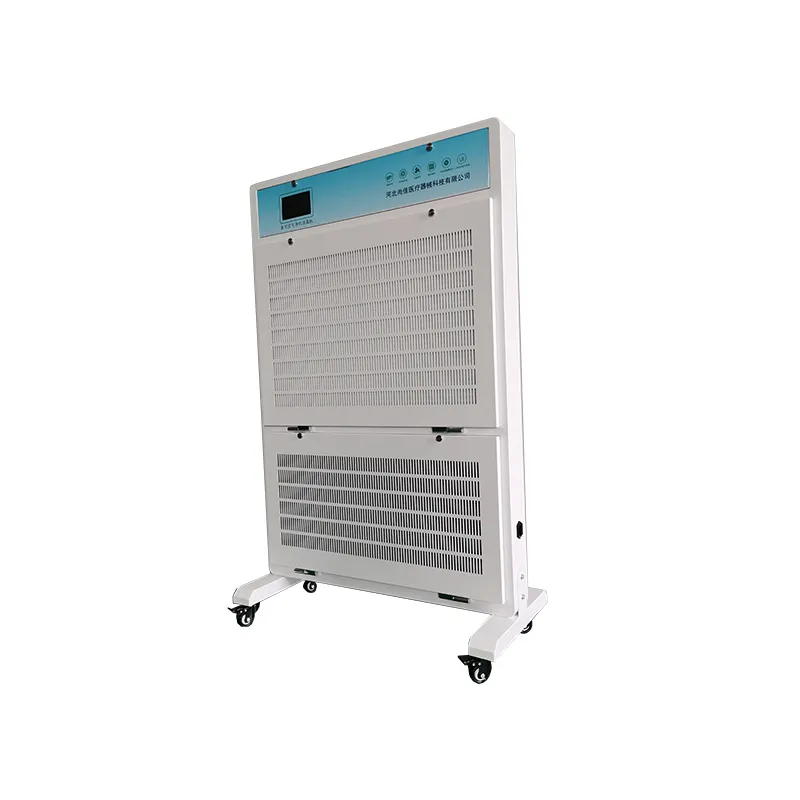

Indoor air is no longer an afterthought. From clinics to classrooms to coffee shops, managers tell me the same thing: “We need clean air, but we have zero floor space.” That’s where the Mobile Wall Mounted Disinfection Machine, Multi-Stage Wind Speed Air Disinfection Machine comes in—a compact system built to run quietly on the wall while doing the heavy lifting in the background. Manufactured in Hebei Province (888 Kaiyuan Road, Jizhou District, Hengshui City), it feels purpose-built for tight, modern interiors.
To be honest, the name is a mouthful. But the pitch is simple: multi-stage filtration + disinfection + flexible airflow. In practice, that means fewer wheeled carts humming in the hallway and more consistent coverage at breathing height. Many customers say they notice fewer odors within hours; it seems that quick carbon uptake helps.
Key specifications (real-world use may vary)
| Model | Mobile Wall Mounted Disinfection Machine |
| Airflow / CADR | ≈ 450–800 m³/h (adjustable multi-stage wind speeds) |
| Filtration stack | Pre-filter (G4) + HEPA (H13 option) + Activated Carbon; UV-C module optional |
| Noise | ≈ 35–58 dB(A) depending on speed |
| Coverage | ≈ 40–120 m² per unit (ceiling height 2.6–3.2 m) |
| Power | 120–220 V, 70–180 W (mode dependent) |
| Controls | Speed presets, timer; optional PM2.5/TVOC sensor display |
| Filter life | Pre-filter 2–3 months; HEPA 8–12 months; Carbon 6–9 months (typical) |
| Compliance targets | HEPA rated to EN 1822 (H13 option); particulate testing aligned with ISO 16890; ozone-free design (UL 2998 methods as reference) |
Where it shines
- Healthcare triage rooms, dental operatories, waiting areas.
- Schools and conference rooms needing quiet, high ACH boosts.
- Retail and F&B where floor space is money.
- Labs, small clinics, and back-of-house corridors.
Process flow and QA (how it’s built and validated)
Materials: powder-coated steel housing; medical-grade HEPA media; coconut-shell activated carbon; UV-C quartz tube (optional). Methods: laser-cut chassis, gasketed HEPA seal, balanced EC fan. Testing: particle removal evaluated to ISO 16890 categories; HEPA efficiency verified per EN 1822 H13 sampling; microbiological reduction run in controlled chambers for reference. Service life: 5–8 years with routine filter changes and annual fan check. Industries: healthcare, education, hospitality, light manufacturing.
Vendor snapshot (quick comparison)
| Vendor/Model | Filtration | Airflow | Noise | Notes |
|---|---|---|---|---|
| StoreOxygen Wall Unit | G4 + HEPA H13 + Carbon (+UV option) | ≈450–800 m³/h | 35–58 dB(A) | Multi-speed, sensor-ready |
| Generic Wall Purifier A | Pre + HEPA (H12) | ≈300–500 m³/h | 40–60 dB(A) | Basic controls |
| Wall Unit B (Quiet) | Pre + HEPA + Carbon | ≈350–600 m³/h | 32–52 dB(A) | Whisper mode; smaller coverage |
Field notes and data
In a 60 m² dental operatory, one unit cut average PM2.5 from 38 µg/m³ to 7–10 µg/m³ within ~25 minutes at medium speed; odor complaints dropped “by day two,” the clinic manager told me. In a school staff room, teachers liked that it mounts high—no tripping hazards. That’s the underrated perk of wall mounted air filtration: it raises the intake zone and reduces clutter.
Customization
- Filter classes: H12/H13, extra carbon weight for VOC-heavy sites.
- UV-C module (254 nm) with safety interlocks; can be omitted to meet zero-UV policies.
- Color/finish to match brand interiors; left/right cable exit.
- BMS-friendly dry contact or Modbus gateway (on request).
If you’re comparing alternatives, remember the basics: validated HEPA efficiency (ask for EN 1822 reports), a meaningful CADR, and documented noise at each speed. Also check ozone: modern systems, including this one, are designed to avoid it—an essential point for wall mounted air filtration near continuous occupants.
Final take
Not every site needs a full ducted overhaul. A well-placed unit like this can add the equivalent of several air changes per hour, fast. Actually, it’s the pragmatic middle path—cleaner air, minimal disruption.
